Building Strong Deck Stairs

Jump to all the videos in this series

Stair stringers are usually attached to the end joist or rim joist of a deck without consideration for the extra load the stairway imposes on the deck frame.  And since the deck joists, beam and footings are designed just for the deck load and not the stair connection, the framing can be overloaded.  There are two options we have to ensure the stairway doesn’t overload a deck frame.  The deck frame can be engineered to handle the load of the deck stairs or the deck stairs can have an independent support system.

Treat the staircase like a separate structure

I use an independent support system so I don’t have to enlist an engineer to design the framing and it’s simple to do.  Separate structural posts with their own footings support a header that the stair stringers attach to.  Generally guard posts will be needed to support the guardrail system at the top of the stairs.  So instead of just terminating those posts at the bottom of the joists, they can run down to footings.  The header is sized to support the stringer top cuts – generally a 2×8 will work unless the stairway is wider than 4 ft.  The header can be screwed to the posts – much like a ledger is screwed to the house – or additional support can be added by installing jack studs on the face of the posts down to the footing.

Special hardware makes framing connections easy

The stringers are connected to the header using stringer-connector hardware.  These have only been manufactured for a few years and are a simple way to provide a secure connection between the stringers and header.  The connectors can be installed using connector nails but I prefer to use screws to help resist withdrawal.  The connectors are reversible so you can install them on the inside face of the outside stringers so they aren’t visible.  Fill all the holes in the hardware into the header and side of the stringer.  Only one hole needs a nail or screw on the bottom of the stringer.

2 ways to support the bottom of the stairs

There is no specialty hardware to mount the bottom of the stringers to the footing or landing.  A couple of conventional methods include notching in a 2x to the bottom of the stringers and using guardrail posts as the link.  A 2x notched and nailed or screwed into the bottom of the stringers can be fastened to the footing / landing with adhesive anchor bolts or wedge anchor bolts drilled and installed after the stringers are positioned.  The 4×4 guard posts bolted to the bottom step of the stringers can secure the stairs to the footing / landing when post bases are attached to the bottom of the posts and fastened down using adhesive or wedge anchors.

Guardrails can connect to the ground or the framing

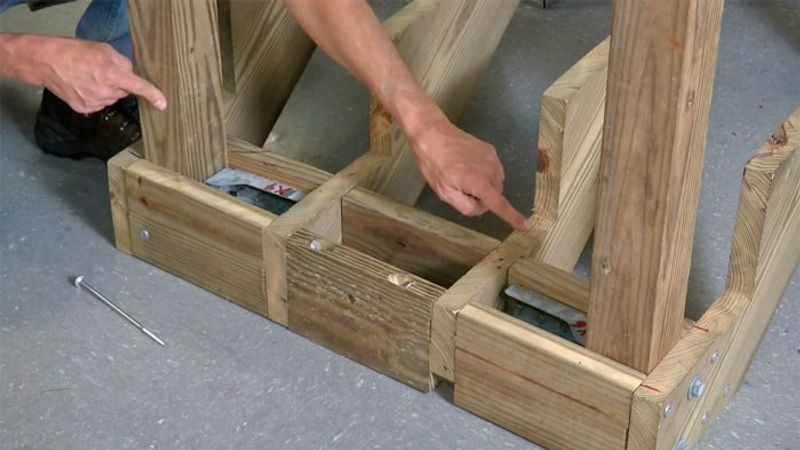

Stabilizing the guardrail posts at the bottom of stairs can be accomplished a couple of ways.  DCA-6 illustrates the method of embedding 4×4 posts in frost-depth concrete footings and bolting them to the outside stringers.  This gives a solid connection at the bottom of the stairway and solid posts.  Another way shown in the video is to screw two rows of blocking between the bottom steps of the stringers. Then install tension tie connectors to the blocks and bolt through to the outside of the posts.  The same effect can be achieved by running a long threaded rod from the outside of posts on the outside of the stairway and through all the stringers (see article referenced below).
